120 HP Direct Driven Single Stage Screw Air Compressor Our 120 HP Direct Driven Single Stage Screw Air Compressor available in Standard Fix Models. We use PM Motor with our VFD Models, which decrease the energy consumption substantially to save even more energy as well as money. Features: • Super premium efficiency IE4 PM motor • Vibration free quieter operation • Designed for hot indian climate • Service friendly design • Direct drive with low rpm • Advance PLC for easy operation • Lowest oil carry over • Lowest life cycle cost Technical Specifications – 120 HP Screw Air Compressor (Model: CTSD 120) Horse Power : 120 HP Power Source : AC Three Phase Model Name/Number : CTSD 120 Number of Compression Stages : Single Stage Weight : 1900 kg Compressor Technology : Screw Compressor Dimension : (L × W × H) 79 x 58 x 70 inch Warranty : 12 Months Cooling Method : Air Cooled Compressor Speed : 2900 RPM Brand Name : Comptech Sound Level : 76 dB FAD Capacity : 554 CFM at 8 kg/cm², 543 CFM at 10 kg/cm²

75 HP Direct Driven Single Stage Screw Air Compressor Our 75 HP Direct Driven Single Stage Screw Air Compressor available in Standard Fix Models. We use PM Motor with our VFD Models, which decrease the energy consumption substantially to save even more energy as well as money. Features: • Super premium efficiency IE4 PM motor • Vibration free quieter operation • Designed for hot indian climate • Service friendly design • Direct drive with low rpm • Advance PLC for easy operation • Lowest oil carry over • Lowest life cycle cost Technical Specifications – 75 HP Screw Air Compressor (Model: CTSD 75) Horse Power : 75 HP Compressor Technology : Screw Compressor Power Source : AC Three Phase Model Name/Number : CTSD 75 Number of Compression Stages : Single Stage Weight : 1150 kg Dimension : (L × W × H) 73 x 42 x 67 inch Warranty : 12 Months Cooling Method : Air Cooled Compressor Speed : 2900 RPM Sound Level : 75 dB FAD Capacity : 356 CFM at 8 kg/cm², 321 CFM at 10 kg/cm² Brand Name : Comptech

60 HP Direct Driven Single Stage Screw Air Compressor Our 60 HP Direct Driven Single Stage Screw Air Compressor available in Standard Fix Models. We use PM Motor with our VFD Models, which decrease the energy consumption substantially to save even more energy as well as money. Features: • Super premium efficiency IE4 PM motor • Vibration free quieter operation • Designed for hot indian climate • Service friendly design • Direct drive with low rpm • Advance PLC for easy operation • Lowest oil carry over • Lowest life cycle cost Technical Specifications – 60 HP Screw Air Compressor (Model: CTSD 60) Horse Power : 60 HP Model Name/Number : CTSD 60 Number of Compression Stages : Single Stage Weight : 960 kg Power Source : AC Three Phase Air Quality Standard : Class I Compressor Speed : 2900 RPM Warranty : 12 Months Dimension : (L × W × H) 73 x 42 x 67 inch Sound Level : 74 dB FAD Capacity : 275 CFM at 8 kg/cm², 254 CFM at 10 kg/cm² Brand Name : Comptech

50 HP Direct Driven Single Stage Screw Air Compressor Our 50 HP Direct Driven Single Stage Screw Air Compressor available in Standard Fix Models. We use PM Motor with our VFD Models, which decrease the energy consumption substantially to save even more energy as well as money. Features: • Super premium efficiency IE4 PM motor • Vibration free quieter operation • Designed for hot indian climate • Service friendly design • Direct drive with low rpm • Advance PLC for easy operation • Lowest oil carry over • Lowest life cycle cost Technical Specifications – 50 HP Screw Air Compressor (Model: CTSD 50) Horse Power : 50 HP Power Source : AC Three Phase Model Name/Number : CTSD 50 Number of Compression Stages : Single Stage Weight : 800 kg Compressor Technology : Screw Compressor Dimension : (L × W × H) 57 x 35 x 58 inch Warranty : 12 Months Cooling Method : Air Cooled Air Quality Standard : Class I Compressor Speed : 2900 RPM Brand Name : Comptech FAD Capacity : 232 CFM at 8 kg/cm², 215 CFM at 10 kg/cm²

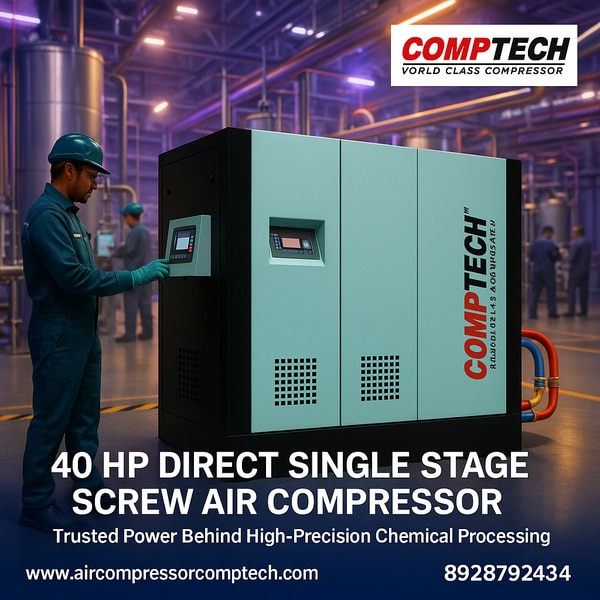

40 HP Direct Driven Single Stage Screw Air Compressor Our 60 HP Direct Driven Single Stage Screw Air Compressoravailable in Standard Fix Models. We use PM Motor with our VFD Models, which decrease the energy consumption substantially to save even more energy as well as money. Features: • Super premium efficiency IE4 PM motor • Vibration free quieter operation • Designed for hot indian climate • Service friendly design • Direct drive with low rpm • Advance PLC for easy operation • Lowest oil carry over • Lowest life cycle cost Technical Specifications – 40 HP Screw Air Compressor (Model: CTSD 40) Horse Power : 40 HP Model Name/Number : CTSD 40 Dimension : (L × W × H) 57 x 35 x 58 inch Weight : 750 kg Compressor Technology : Screw Compressor Warranty : 12 Months Cooling Method : Air Cooled Air Quality Standard : Class I Brand Name : Comptech Compressor Speed : 2900 RPM Sound Level : 72 dB FAD Capacity : 185 CFM at 8 kg/cm², 172 CFM at 10 kg/cm²

20 HP Direct Driven Single Stage Screw Air Compressor Our 20 HP Direct Driven Single Stage Screw Air Compressor available in Standard Fix Models. We use PM Motor with our VFD Models, which decrease the energy consumption substantially to save even more energy as well as money. Features: • Super premium efficiency IE4 PM motor • Vibration free quieter operation • Designed for hot indian climate • Service friendly design • Direct drive with low rpm • Advance PLC for easy operation • Lowest oil carry over • Lowest life cycle cost Technical Specifications – 20 HP Screw Air Compressor (Model: CTSD 20) Horse Power : 20 HP Power Source : AC Three Phase Model Name/Number : CTSD 20 Brand : Comptech Number of Compression Stages : Single Stage Weight : 450 kg Compressor Technology : Screw Compressor Dimension : (L × W × H) 36 x 30 x 43 inch Warranty : 12 Months Cooling Method : Air Cooled Air Quality Standard : Class I Sound Level : 70 dB Compressor Speed : 2900 RPM FAD Capacity : 85 CFM at 8 kg/cm², 77 CFM at 10 kg/cm²

10 HP Direct Driven Single Stage Screw Air Compressor Our 10 HP Direct Driven Single Stage Screw Air Compressor available in Standard Fix Models. We use PM Motor with our VFD Models, which decrease the energy consumption substantially to save even more energy as well as money. Features: • Super premium efficiency IE4 PM motor • Vibration free quieter operation • Designed for hot indian climate • Service friendly design • Direct drive with low rpm • Advance PLC for easy operation • Lowest oil carry over • Lowest life cycle cost Technical Specifications – 10 HP Screw Air Compressor (Model: CTSD 10) Horse Power : 10 HP Compressor Technology : Screw Compressor Power Source : AC Three Phase Model Name/Number : CTSD 10 Air Quality Standard : Class I Number of Compression Stages : Single Stage Weight : 400 kg Dimension : (L × W × H) 34 x 26 x 44 inch Warranty : 12 Months Cooling Method : Air Cooled Brand : Comptech Sound Level : 68 dB FAD Capacity : 40 CFM at 8 kg/cm², 35 CFM at 10 kg/cm² Compressor Speed : 2900 RPM

30 HP Screw Air Compressor Motor Power : 30 HP Brand: Comptech Cooling System: Air Cooled Maximum Pressure: 16 Bar Maximum Flow Rate(CFM): 152 CFM Compressor Type: Screw Compressor Our 30 HP Screw Air Compressor available in Standard Fix Models. We use PM Motor with our VFD Models, which decrease the energy consumption substantially to save even more energy as well as money. Features: Super premium efficiency IE4 PM motor Vibration free quieter operation Designed for hot indian climate Service friendly design Direct drive with low rpm Advance PLC for easy operation Lowest oil carry over Lowest life cycle cost

50 HP Screw Air Compressor Horse Power : 50 HP Brand : Comptech Model Name/Number : CTS II 50 Compressor Noise Level : 73 dB Number Of Compression Stages : Two Stage Compressor Technology : Screw Compressor Warranty : 12 months Cooling Method : Air Cooled Air Quality Standard : Class I Compressor Speed : 1450 rpm Working Pressure : 5 bar g FAD Capacity : 326 cfm A 2-Stage Screw Air Compressor Series designed to enhance the profitability of your production. The regulated speed models, or VFD+ models, save energy by matching the output to the plant's air demand, with the added benefit of high-efficiency internal Permanent Magnet Motors, ensuring no loss of efficiency. Other Details: Equipped with VFD & IE4 PM Motor Features: Best-in-class efficiency Premium efficiency 2-stage air-end Longer lifespan due to low motor RPM Available with super-premium options Low noise and minimal vibrations Lowest cost of ownership in the market 50,000 hours bearing life Specifications: Working Pressure: 8 bar g, 10 bar g FAD Capacity: 258 cfm, 234 cfm
