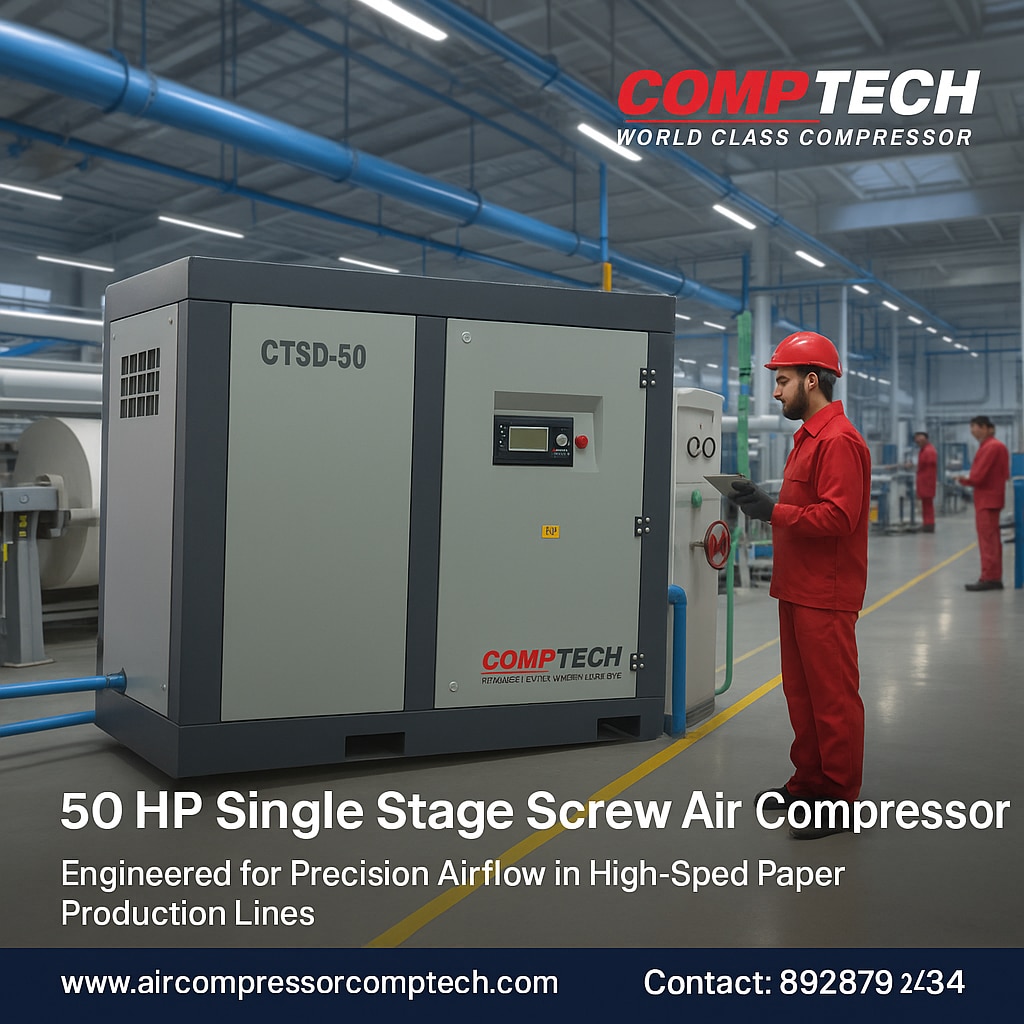

50 HP Single Stage Screw Air Compressor

50 HP Direct Driven Single Stage Screw Air Compressor

Our 50 HP Direct Driven Single Stage Screw Air Compressor available in Standard Fix Models. We use PM Motor with our VFD Models, which decrease the energy consumption substantially to save even more energy as well as money.

Features:

• Super premium efficiency IE4 PM motor

• Vibration free quieter operation

• Designed for hot indian climate

• Service friendly design

• Direct drive with low rpm

• Advance PLC for easy operation

• Lowest oil carry over

• Lowest life cycle cost

Technical Specifications – 50 HP Screw Air Compressor (Model: CTSD 50)

Horse Power : 50 HP

Power Source : AC Three Phase

Model Name/Number : CTSD 50

Number of Compression Stages : Single Stage

Weight : 800 kg

Compressor Technology : Screw Compressor

Dimension : (L × W × H) 57 x 35 x 58 inch

Warranty : 12 Months

Cooling Method : Air Cooled

Air Quality Standard : Class I

Compressor Speed : 2900 RPM

Brand Name : Comptech

FAD Capacity : 232 CFM at 8 kg/cm², 215 CFM at 10 kg/cm²
