40 HP Single Stage Screw Air Compressor

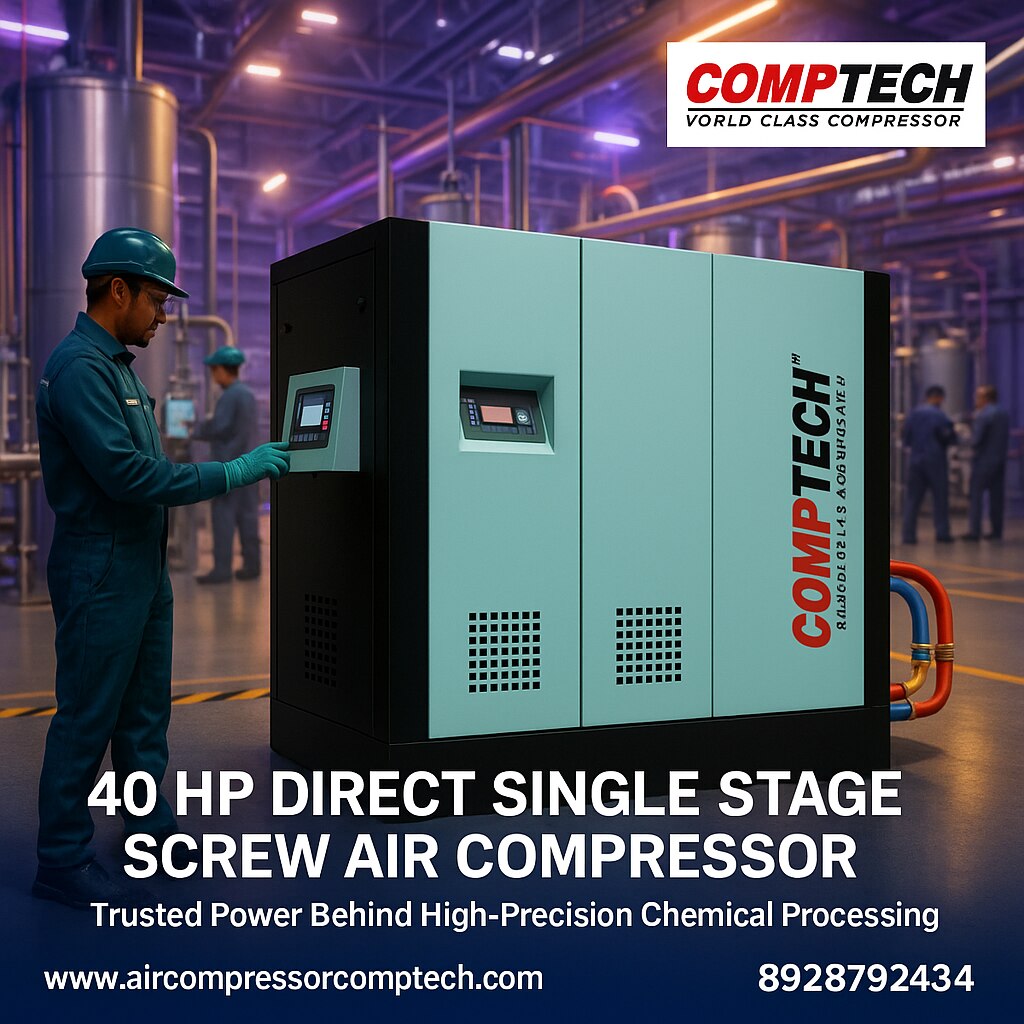

40 HP Direct Driven Single Stage Screw Air Compressor

Our 60 HP Direct Driven Single Stage Screw Air Compressoravailable in Standard Fix Models. We use PM Motor with our VFD Models, which decrease the energy consumption substantially to save even more energy as well as money.

Features:

• Super premium efficiency IE4 PM motor

• Vibration free quieter operation

• Designed for hot indian climate

• Service friendly design

• Direct drive with low rpm

• Advance PLC for easy operation

• Lowest oil carry over

• Lowest life cycle cost

Technical Specifications – 40 HP Screw Air Compressor (Model: CTSD 40)

Horse Power : 40 HP

Model Name/Number : CTSD 40

Dimension : (L × W × H) 57 x 35 x 58 inch

Weight : 750 kg

Compressor Technology : Screw Compressor

Warranty : 12 Months

Cooling Method : Air Cooled

Air Quality Standard : Class I

Brand Name : Comptech

Compressor Speed : 2900 RPM

Sound Level : 72 dB

FAD Capacity : 185 CFM at 8 kg/cm², 172 CFM at 10 kg/cm²
