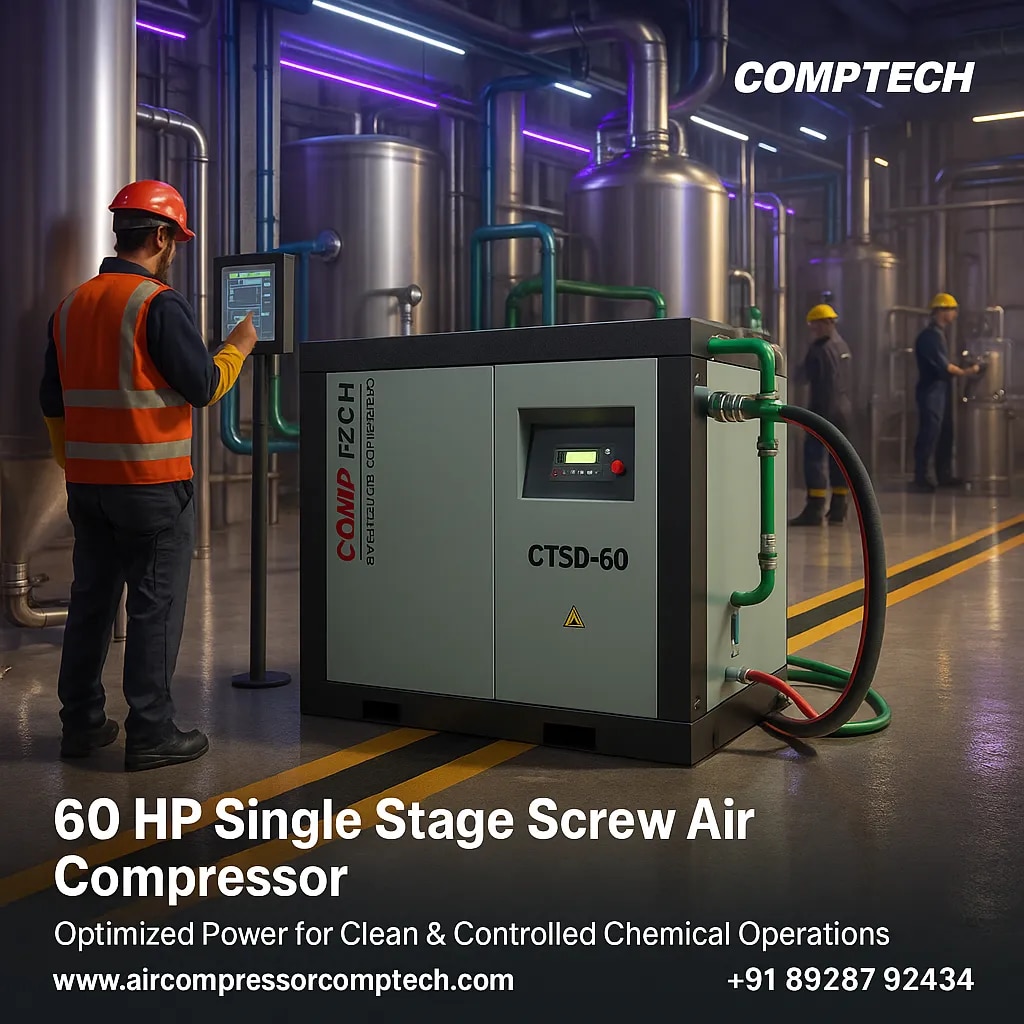

60 HP Direct Driven Single Stage Screw Air Compressor Our 60 HP Direct Driven Single Stage Screw Air Compressor available in Standard Fix Models. We use PM Motor with our VFD Models, which decrease the energy consumption substantially to save even more energy as well as money. Features: • Super premium efficiency IE4 PM motor • Vibration free quieter operation • Designed for hot indian climate • Service friendly design • Direct drive with low rpm • Advance PLC for easy operation • Lowest oil carry over • Lowest life cycle cost Technical Specifications – 60 HP Screw Air Compressor (Model: CTSD 60) Horse Power : 60 HP Model Name/Number : CTSD 60 Number of Compression Stages : Single Stage Weight : 960 kg Power Source : AC Three Phase Air Quality Standard : Class I Compressor Speed : 2900 RPM Warranty : 12 Months Dimension : (L × W × H) 73 x 42 x 67 inch Sound Level : 74 dB FAD Capacity : 275 CFM at 8 kg/cm², 254 CFM at 10 kg/cm² Brand Name : Comptech
